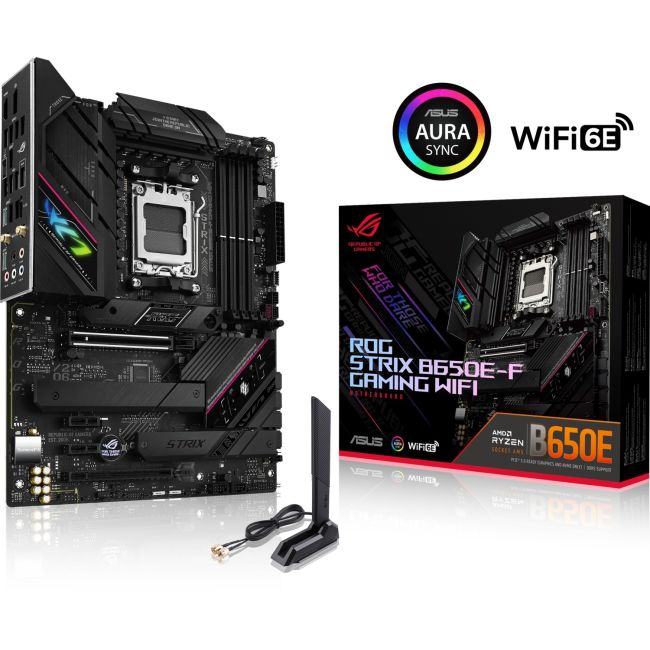

ASUS ROG STRIX B650E-F GAMING WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, Wi-Fi 6E, AM5 ATX
Redna cena
264,95 €
Akcijska cena
219,91 €
Razpoložljivost:
Na zalogi
Šifra
E0002185
ali
Hitro in enostavno obročno odplačevanje
Že od
10.75 EUR
Izračun obrokov
PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000 Series
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B650
POMNILNIK:
4 x DDR5 DIMM ECC and Non-ECC, Un-buffered Memory 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in EXtended Profiles for Overclocking, OptiMem II podpora
GRAFIKA: DA - preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 5.0 x16
1 x PCI Express 3.0/4.0 x4
2 x PCI Express 3.0/4.0 x1
MREŽNA KARTICA: Intel 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) LANGuard + Wi-Fi 6E 2.4/5GHz 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2
ZVOČNA KARTICA: ROG SupremeFX 7.1 Audio codec ALC4080 High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
DODATNO:
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-LED
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Spletna stran proizvajalca: https://rog.asus.com/motherboards/rog-strix/rog-strix-b650e-f-gaming-wifi-model/
| Proizvajalec | Asus |
|---|---|
| EAN | 4711081944034 |
| Garancija | 3 leta |
| Vključeni dodatki | Stickers Uporabniški priročnik WiFi antenna |
| Vključeni kabli | 2 x SATA 6 Gb/s kabla |
| Hitrost pomnilnika | 5200MHz(PC5-41600) |
| Podprti avdio standardi | Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: PCI Express 5.0 x4 (1 x M.2 (ključ M)) Krmilnik za shranjevanje: PCI Express 4.0 x4 (2 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10 SATA III-600 (4) Wi-Fi krmilnik: |
| Economic operator in EU / authorized representative | ASUS COMPUTER GmbH |
| Postal address | Harkortstrasse 21-23, 40880 Ratingen, Germany |
| Electronic address | ProductSafety@asus.com |
| Podprti procesorji | AMD Ryzen 7000 Series |
| PCI Express 4.0 x16 | 1 |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM |
| Vrsta napajalnih priključkov | 24+8+4 pin |
| Podprti operacijski sistem | Microsoft Windows 11 64-bit |
| Avdio podatkovna širina | 32-bit |
| PCI Express 5.0 x16 | 1 |
| PCI Express 4.0 x1 | 2 |
| Wi-Fi antena | 1 |
| Teža | 1 kg |
| Garancija v mesecih | 36 mesecev |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 1 kg |
| Neto teža plastike maloprodajne embalaže | 1 kg |
| Paketov v škatli | 1 |
| Vrsta pakiranja | Škatla |
| Koda EAN | 4711081944034 |
| Tip | ATX |
| Bruto teža paketa (kg) | 1 kg |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered OptiMem II AMD EXPO |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | ECC/Non-ECC |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 5 (3.5 mm mini vtič) |
| USB2.0 | 4 (USB tip A) |
| Standardi ležišča procesorja | Socket AM5 |
| Nabor čipov | AMD B650 |
| Največja namestljiva zmogljivost pomnilnika | 192 GB |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| Nabor zvočnih čipov | Realtek ALC4080 / Savitech SV3H712 |
| Nabor čipov LAN | Intel i225-V |
| LAN | 1 (RJ-45) |
| Vrsta pomnilnika | DDR5 SDRAM |
| Bluetooth | Bluetooth 5.2 |
