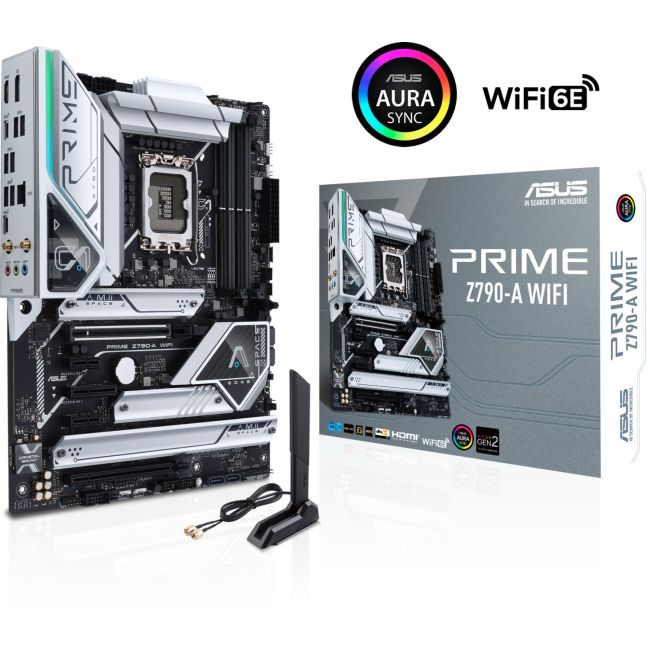

ASUS PRIME Z790-A WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WIFI 6E, LGA1700 ATX
Redna cena
314,38 €
Akcijska cena
260,93 €
Ni na zalogi
Šifra
230901062317167733
ali
Hitro in enostavno obročno odplačevanje
Že od
12.76 EUR
Izračun obrokov
PODNOŽJE: INTEL LGA1700
ZA PROCESORJE: Intel 12/13th Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z790 Express
POMNILNIK:
4 x DDR5 (7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) OptiMem II podpora
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCIe 5.0/4.0/3.0 x16 (x16 mode)
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
MREŽNA KARTICA: Intel 2.5GbE LAN chip ASUS LANGuard (2.5 Gbps/1 Gbps/100 Mbps) + Wi-Fi 6E 2x2 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz + BLUETOOTH 5.3
ZVOČNA KARTICA: Realtek S1220A High Definition Audio Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
3 x Audio jacks
DODATNO:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box Headers
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
DTS:X® Ultra
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
Spletna stran proizvajalca: https://www.asus.com/motherboards-components/motherboards/prime/prime-z790-a-wifi/
| Proizvajalec | Asus |
|---|---|
| EAN | 4711081939320 |
| Garancija | 3 leta |
| Vključeni dodatki | Hiter začetni meni Vijaki |
| Vključeni kabli | 2 x SATA 6 Gb/s kabla |
| Hitrost pomnilnika | 7200MHz |
| Podprti avdio standardi | Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 SATA III-600 (4) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCI Express 4.0 x4 (3 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCIe 4.0 x4/SATA (1 x M.2 (ključ M)) |
| Economic operator in EU / authorized representative | ASUS COMPUTER GmbH |
| Postal address | Harkortstrasse 21-23, 40880 Ratingen, Germany |
| Electronic address | ProductSafety@asus.com |
| Podprti procesorji | Intel 12th Gen Processors Intel 13th Gen Processors |
| PCI Express 4.0 x16 | 1 |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM |
| Značilnosti matične plošče | RGB LED |
| PCI Express 3.0 x1 | 2 |
| Avdio podatkovna širina | 32-bit |
| PCI Express 5.0 x16 | 1 |
| Arhitekturne lastnosti | Intel Turbo Boost tehnologija 2.0 Intel® Rapid Storage Technology enterprise Intel Turbo Boost Technology 3.0 |
| WLAN | M.2 |
| PCI Express 4.0 x4 | 1 |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 1 kg |
| Neto teža plastike maloprodajne embalaže | 1 kg |
| Paketov v škatli | 4 |
| Vrsta pakiranja | Škatla |
| Koda EAN | 4711081939320 |
| Tip | ATX |
| Bruto teža paketa (kg) | 8.2522 kg |
| Dolžina paketa (mm) | 338 mm |
| Širina paketa (mm) | 273 mm |
| Višina paketa (mm) | 68 mm |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered XMP OptiMem II |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | Non-ECC |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 3 (3.5 mm mini vtič) |
| Standardi ležišča procesorja | Socket 1700 |
| Nabor čipov | Intel Z790 |
| Vtična kartica | Wi-Fi krmilnik: 1 x M.2 (Key E) |
| Največja namestljiva zmogljivost pomnilnika | 192 GB |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| Nabor zvočnih čipov | Realtek ALC S1220A |
| LAN | 1 (RJ-45) |
| Vrsta pomnilnika | DDR5 SDRAM |
| Garancija v mesecih | 36 mesecev |
| Teža | 1,29 kg |
| Bluetooth | Bluetooth 5.3 |
