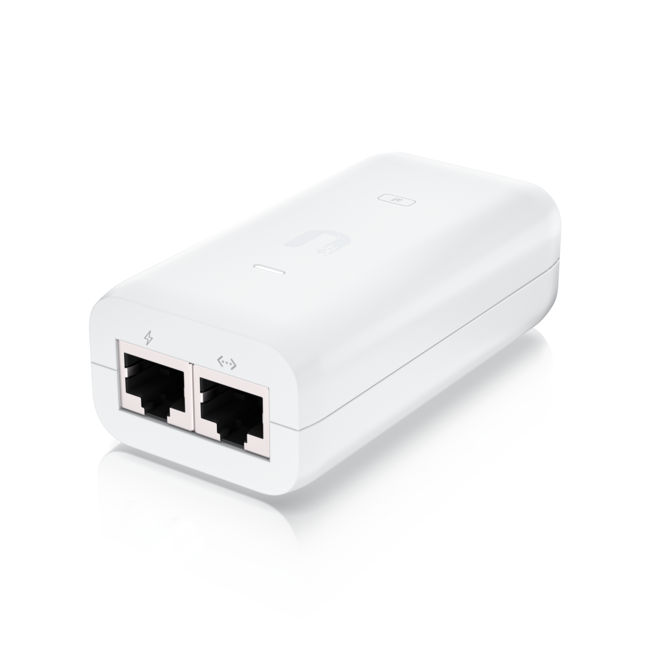

Ubiquiti napajalnik PoE,48V, 802.3AF
Redna cena
11,80 €
Akcijska cena
10,55 €
Ni na zalogi
Šifra
E0013172
Adapter, ki lahko napaja naprave UniFi PoE z aplikacijami brezžične mreže ali razbremeni odvisnosti od napajanja stikala PoE.
Lastnosti:
Zagotavlja do 15W PoE
Združljivo z U6 Mesh, Camera G4 Pro in drugimi napravami PoE
Zaščita pred prenapetostjo, najvišjim impulzom in nadtokovno zaščito
AC kabel z ozemljitvijo
LED indikator za spremljanje stanja
SPECIFIKACIJE:
| U-POE-af | |
| Dimensions | 86 x 46 x 33 mm |
| (3.39 x 1.81 x 1.30") | |
| Weight | 100 g |
| (3.53 oz) | |
| Output Voltage | 48VDC @ 0.32A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 500mA @ 90VAC |
| Inrush Current | <100A Peak @ 25°C |
| Efficiency | 84.25+% |
| Output Ripple | 200mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C |
| (32 to 104° F) | |
| Storage Temperature | -30 to 70°C |
| (-22 to 158° F) | |
| Operating Humidity | 5 to 90% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| Proizvajalec | UBIQUITI |
|---|---|
| EAN | 817882024976 |
| Garancija | 2 leti |
| Economic operator in EU / authorized representative | Ubiquiti International Holding B.V. |
| Postal address | Ekkersrijt 3102. Son en Breugel, 5692 CC., The Netherlands |
| Electronic address | Legal@ui.com |
| Teža | 0,18 kg |
| Garancija v mesecih | 24 |
| Barva original | Bela |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 0 kg |
| Neto teža plastike maloprodajne embalaže | 0 kg |
| Paketov v škatli | 50 |
| Vrsta pakiranja | Maloprodajno |
| Koda EAN | 817882024976 |
| Bruto teža paketa (kg) | 11.79 kg |
| Dolžina paketa (mm) | 90 mm |
| Širina paketa (mm) | 200 mm |
| Višina paketa (mm) | 40 mm |
| Dolžina škatle (mm) | 509 mm |
| Širina škatle (mm) | 290 mm |
| Višina škatle (mm) | 397 mm |
| Material | Plastika |
