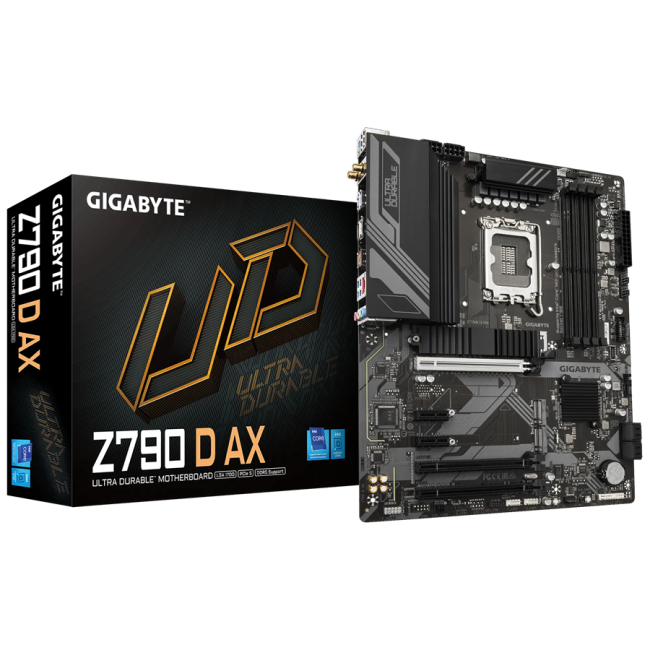

GIGABYTE Z790 D AX LGA1700 ATX osnovna plošča - Intel Z790, 4xDDR5, 3xM.2, 4xSATA
Redna cena
219,08 €
Akcijska cena
181,83 €
Ni na zalogi
Šifra
E0018768
ali
Hitro in enostavno obročno odplačevanje
Že od
17.03 EUR
Izračun obrokov
PODNOŽJE: INTEL LGA1700
ZA PROCESORJE: 14/13/12 Gen. Intel Core, Pentium and Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z790 Express
POMNILNIK:
4 x DDR5 (7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400MHz) do skupno 256GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, podpora za ECC Un-buffered DIMM 1Rx8/2Rx8 in non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
RAID: DA (0,1,5,10) NVMe SATA
RAZŠIRITVENE REŽE:
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) + Wi-Fi 6E + BLUETOOTH 5.3
Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
ZVOČNA KARTICA: Realtek High Definition Audio Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
DODATNO:
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
| Proizvajalec | GIGABYTE |
|---|---|
| EAN | 4719331860592 |
| Garancija | 3 leta |
| Hitrost pomnilnika | 5600MHz(PC5-44800) |
| Podprti avdio standardi | Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCI Express 4.0 x4 (2 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCIe 4.0 x4/SATA (1 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 SATA III-600 (4) |
| Economic operator in EU / authorized representative | Giga-Byte Technology BV |
| Postal address | Steenoven 24, 5626 DK Eindhoven, Netherlands |
| Electronic address | EU.grp@gigabyte.com |
| Podprti procesorji | Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | Gigabyte Q-Flash WfM 2.0 podpora PnP 1.0a podpora UEFI SMBIOS 2.7 podpora DMI 2.7 podpora ACPI 5.0 podpora 256 Mb Flash ROM |
| Nadzor strojne opreme | Temperatura Napetost Sistemska temperatura Sistemska napretost |
| Vrsta napajalnih priključkov | 24 + 8 pin |
| Značilnosti matične plošče | Nadzor hitrosti ventilatorja |
| Podprti operacijski sistem | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| PCI Express 3.0 x1 | 2 |
| PS/2 | 1 |
| PCI Express 5.0 x16 | 1 |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 0.01 kg |
| Neto teža plastike maloprodajne embalaže | 0.01 kg |
| Paketov v škatli | 1 |
| Vrsta pakiranja | Maloprodajno |
| Koda EAN | 4719331860592 |
| Tip | ATX |
| Bruto teža paketa (kg) | 1.6 kg |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered Dvojno mesto Enotna stopnja XMP |
| Število pomnilniških rež | 4 |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 3 (3.5 mm mini vtič) |
| USB2.0 | 2 (USB tip A) |
| Standardi ležišča procesorja | Socket 1700 |
| Nabor čipov | Intel Z790 |
| Vtična kartica | Wi-Fi krmilnik: Intel Wi-Fi 6E AX211 |
| Največja namestljiva zmogljivost pomnilnika | 256 GB |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type C)); 1 (USB 3.2 (type A)) |
| LAN | 1 (RJ-45) |
| Vrsta pomnilnika | DDR5 SDRAM |
| Garancija v mesecih | 36 mesecev |
| Teža | 1,6 kg |
| Bluetooth | Bluetooth 5.3 |
