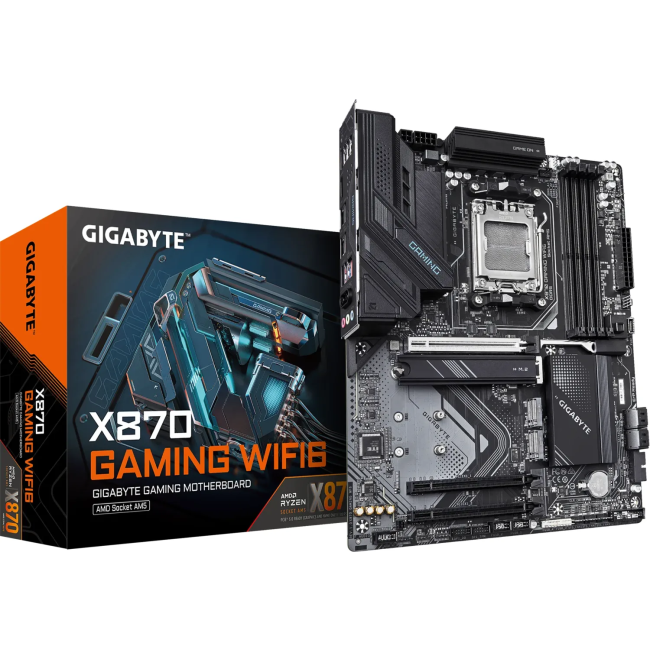

GIGABYTE X870 GAMING WIFI6, DDR5, SATA3, USB4, DP, 2.5GbE, WiFi 6, AM5 ATX
Redna cena
270,55 €
Akcijska cena
224,55 €
Razpoložljivost:
Na zalogi
Šifra
E0005403
ali
Hitro in enostavno obročno odplačevanje
Že od
11.00 EUR
Izračun obrokov
PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD Ryzen 7000/8000/9000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD X870
POMNILNIK:
4 x DIMM DDR5, Max. 256GB, DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz
Dual Channel Memory Architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
GRAFIKA: preko APU, če le-ta podpira
RAID: DA
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAZŠIRITVENE REŽE:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
MREŽNA KARTICA:
Realtek 2.5GbE LAN chip + Wi-Fi 6 + BLUETOOTH 5.3
Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
ZVOČNA KARTICA: Realtek Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
4 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPort (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/X870-GAMING-WIFI6#kf
| Proizvajalec | GIGABYTE |
|---|---|
| EAN | 04719331865399 |
| Garancija | 3 leta |
| Vključeni dodatki | Hiter začetni meni |
| Hitrost pomnilnika | 8200MHz |
| Podprti avdio standardi | Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: PCI Express 5.0 x4 (1 x M.2) Krmilnik za shranjevanje: PCI Express 4.0 x2 (1 x M.2) Krmilnik za shranjevanje: PCI Express 4.0 x4 (1 x M.2) Krmilnik za shranjevanje: SATA III-600 (4) |
| Podprti procesorji | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | Gigabyte Q-Flash WfM 2.0 podpora PnP 1.0a podpora UEFI SMBIOS 2.7 podpora DMI 2.7 podpora ACPI 5.0 podpora 256 Mb Flash ROM |
| Značilnosti matične plošče | Nadzor hitrosti ventilatorja |
| Podprti operacijski sistem | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| PCI Express 5.0 x16 | 1 |
| Teža | 1,0936 kg |
| Garancija v mesecih | 36 mesecev |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 305 mm |
| Širina (mm) | 244 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 2 kg |
| Neto teža plastike maloprodajne embalaže | 0.05 kg |
| Paketov v škatli | 8 |
| Vrsta pakiranja | Maloprodajno |
| Koda EAN | 4719331865399 |
| Tip | ATX |
| Bruto teža paketa (kg) | 15.22 kg |
| Dolžina paketa (mm) | 100 mm |
| Širina paketa (mm) | 290 mm |
| Višina paketa (mm) | 320 mm |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered Dvojno mesto Enotna stopnja XMP AMD EXPO |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | Non-ECC |
| USB 3.2 Gen 1 | 3 (USB 3.2 (type A)) |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 3 (3.5 mm mini vtič) |
| USB2.0 | 4 (USB tip A) |
| Standardi ležišča procesorja | Socket AM5 |
| Nabor čipov | AMD X870 |
| Vtična kartica | Wi-Fi krmilnik: Supports: Nivo 0, Nivo 1, Nivo 10 1 x M.2 (Key E) |
| Nabor grafičnih čipov | AMD Radeon |
| Največja namestljiva zmogljivost pomnilnika | 256 GB |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type A)) |
| USB 4.0 | 2 (USB 4.0 (type C)) |
| LAN | 1 (RJ-45) |
| Vrsta pomnilnika | DDR5 SDRAM |
| Bluetooth | Bluetooth 5.3 |
