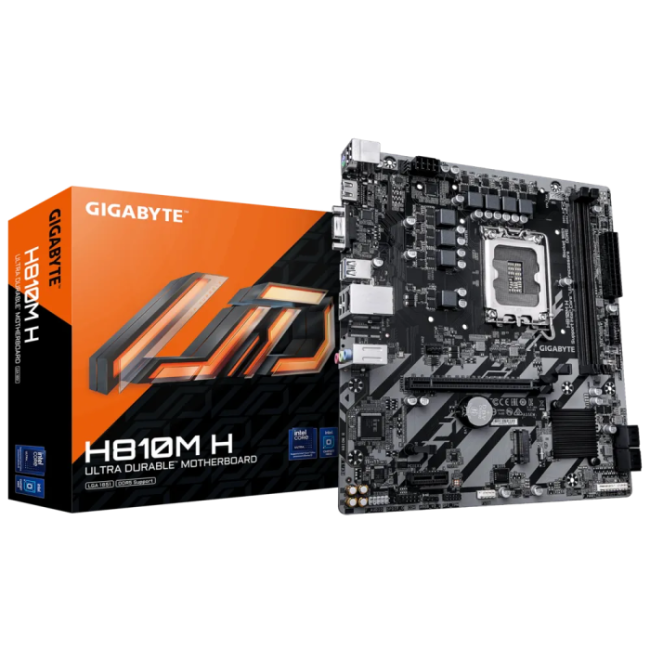

GIGABYTE H810M H, DDR5, SATA3, HDMI, USB3.2Gen1, LGA1851 mATX

PODNOŽJE: INTEL LGA 1851
ZA PROCESORJE: Intel Core Ultra
FORMAT: Micro ATX Form Factor 24.4cm x 21.5cm
VEZNI ČIP: Intel H810
POMNILNIK:
2 x DDR5 DIMM (do 6400MHz) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora
GRAFIKA: DA - preko CPU
RAID: DA (0,1,5,10 SATA)
RAZŠIRITVENE REŽE:
1 x PCI Express x16 (4.0/3.0)
1 x PCI Express x1 (3.0)
MREŽNA KARTICA: Realtek LAN chip (10/100/1000 Mbit)
ZVOČNA KARTICA: Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x D-Sub port
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
