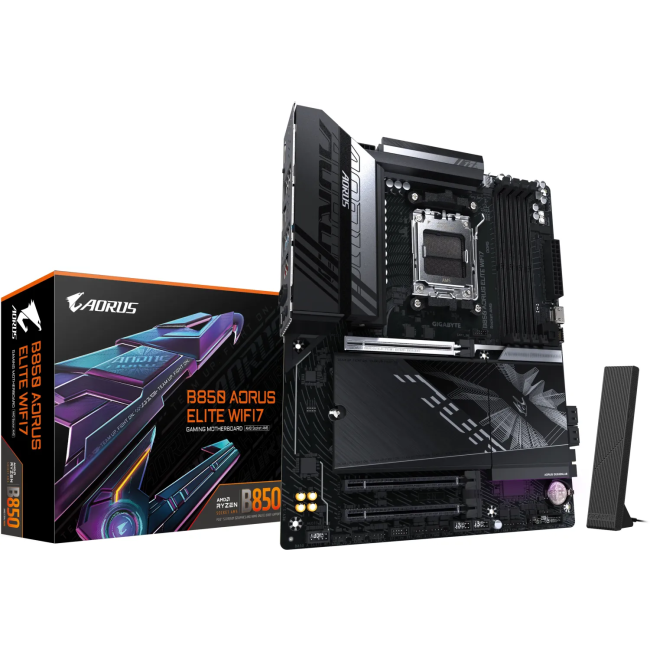

GIGABYTE B850 AORUS ELITE WIFI7, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WiFi 7, AM5 ATX
Redna cena
281,58 €
Akcijska cena
233,70 €
Ni na zalogi
Šifra
250115135701629416
ali
Hitro in enostavno obročno odplačevanje
Že od
11.44 EUR
Izračun obrokov
PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000/8000/9000 Series
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B850
POMNILNIK:
4 x DDR5 DIMM non-ECC 8200/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400MHz (odvisno od procesorja) do skupno 256GB kapacitete, dual channel in EXtended Profiles for Overclocking, Extreme Memory Profile (XMP) podpora
GRAFIKA: DA - preko APU
RAID: DA (0,1,10) support for SATA/NVME storage devices
RAZŠIRITVENE REŽE:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) ; Realtek® Wi-Fi 7 RTL8922AE, 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz, BLUETOOTH 5.4
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x DisplayPort*
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
DODATNO:
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7/sp#sp
| Proizvajalec | GIGABYTE |
|---|---|
| EAN | 4719331866105 |
| Garancija | 3 leta |
| Vključeni dodatki | Hiter začetni meni |
| Hitrost pomnilnika | 8200MHz |
| Podprti avdio standardi | Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: PCI Express 5.0 x4 (1 x M.2) Krmilnik za shranjevanje: PCI Express 4.0 x4 (2 x M.2) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 SATA III-600 (4) |
| Economic operator in EU / authorized representative | Giga-Byte Technology BV |
| Postal address | Steenoven 24, 5626 DK Eindhoven, Netherlands |
| Electronic address | EU.grp@gigabyte.com |
| Podprti procesorji | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | Gigabyte Q-Flash WfM 2.0 podpora PnP 1.0a podpora UEFI SMBIOS 2.7 podpora DMI 2.7 podpora ACPI 5.0 podpora 256 Mb Flash ROM |
| Značilnosti matične plošče | Nadzor hitrosti ventilatorja |
| Podprti operacijski sistem | Microsoft Windows 11 64-bit |
| Wi-Fi antena | 2 |
| PCI Express x16 | 3 |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 0.05 kg |
| Neto teža plastike maloprodajne embalaže | 0.03 kg |
| Paketov v škatli | 6 |
| Vrsta pakiranja | Maloprodajno |
| Koda EAN | 4719331866105 |
| Tip | ATX |
| Bruto teža paketa (kg) | 14.73 kg |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered Dvojno mesto Enotna stopnja XMP AMD EXPO |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | Non-ECC |
| USB 3.2 Gen 1 | 5 (USB 3.2 (type A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 2 (3.5 mm mini vtič) |
| USB2.0 | 4 (USB tip A) |
| Standardi ležišča procesorja | Socket AM5 |
| Nabor čipov | AMD B850 |
| Vtična kartica | Wi-Fi krmilnik: 1 x M.2 |
| Nabor grafičnih čipov | AMD Radeon |
| Največja namestljiva zmogljivost pomnilnika | 256 GB |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type C)); 2 (USB 3.2 (type A)) |
| S/PDIF-out optični | 1 (TOSLINK) |
| LAN | 1 (RJ-45) |
| Wi-Fi | IEEE 802.11be Wi-Fi 7 |
| Vrsta pomnilnika | DDR5 SDRAM |
| Garancija v mesecih | 36 mesecev |
| Teža | 2,37 kg |
| Bluetooth | Bluetooth 5.4 |
