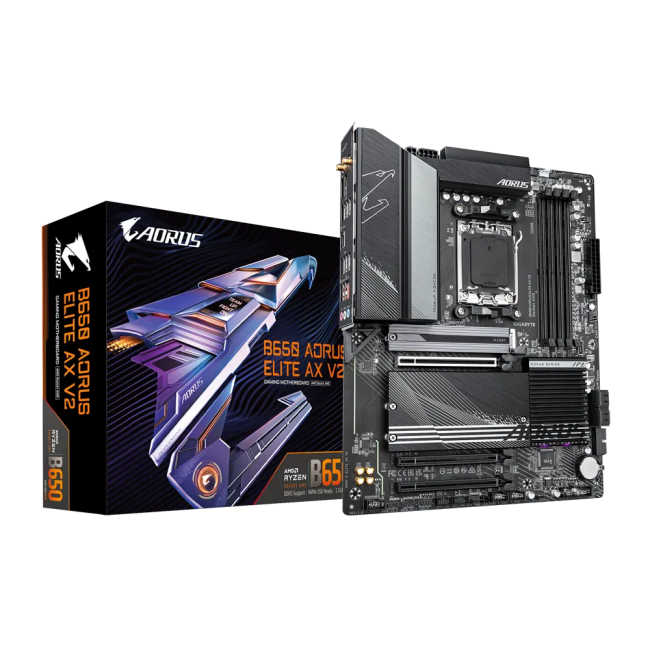

GIGABYTE B650 AORUS ELITE AX V2, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WiFi 6E, AM5 ATX
Redna cena
226,22 €
Akcijska cena
187,77 €
Ni na zalogi
Šifra
240613132145023115
ali
Hitro in enostavno obročno odplačevanje
Že od
17.59 EUR
Izračun obrokov
PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000/8000 Series
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B650
POMNILNIK:
4 x DDR5 DIMM non-ECC 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400MHz (odvisno od procesorja) do skupno 192GB kapacitete, dual channel in EXtended Profiles for Overclocking, Extreme Memory Profile (XMP) podpora
GRAFIKA: DA - preko APU
RAID: DA (0,1,10) support for SATA/NVME storage devices
RAZŠIRITVENE REŽE:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) ; Realtek Wi-Fi 6E RTL8852CE, a, b, g, n, ac, ax, supporting 2.4/5/6 GHz, BLUETOOTH 5.3
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)jk
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
| Proizvajalec | GIGABYTE |
|---|---|
| EAN | 4719331859381 |
| Garancija | 3 leta |
| Hitrost pomnilnika | 5200MHz (PC5-41600) |
| Integrirano | Krmilnik za shranjevanje: Supports: Stopnja 0, Stopnja 1 PCI Express 5.0 x4 (1 x M.2) Krmilnik za shranjevanje: Supports: Stopnja 0, Stopnja 1 PCI Express 4.0 x4 (2 x M.2) Krmilnik za shranjevanje: Supports: Stopnja 0, Stopnja 1 SATA III-600 (4) |
| Economic operator in EU / authorized representative | Giga-Byte Technology BV |
| Postal address | Steenoven 24, 5626 DK Eindhoven, Netherlands |
| Electronic address | EU.grp@gigabyte.com |
| PCI Express 4.0 x16 | 1 |
| Vrsta BIOS-a | AMI |
| Nadzor strojne opreme | Temperatura CPU-ja Napetost CPU-ja Temperatura sistema Sistemska napetost |
| Vrsta napajalnih priključkov | 24+8+4 zatič |
| Podprti operacijski sistem | Microsoft Windows 10 64-bitna različica Microsoft Windows 11 64-bitna različica |
| PCI Express 3.0 x1 | 2 |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Koda EAN | 4719331859381 |
| Zagotavlja metodo preverjanja napak | Non-ECC |
| HDMI | 1 (HDMI (Tip A)) |
| Nabor čipov | AMD B650 |
| Vtična kartica | Krmilnik Wi-Fi: Realtek RTL8852CE |
| Način zvočnega izhoda | 7.1-kanalni prostorski zvok |
| Zvočni vmesnik | 3 (3.5-mm mini jack) |
| USB 3.2 1. generacije | 5 (USB 3.2 (tip A)) |
| Funkcije BIOS-a | Gigabyte Q-Flash Podpora za WfM 2.0 Podpora za PnP 1.0a UEFI Podpora za SMBIOS 2.7 Podpora za DMI 2.7 Podpora za ACPI 5.0 256 Mb bliskovni ROM |
| Podpira centralno procesorsko enoto | Serija AMD Ryzen 7000 AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| LAN | 1 (RJ-45) |
| Podpora za največjo količino CPU-ja | 1 |
| Vrsta pomnilnika | DDR5 SDRAM |
| Bluetooth | Bluetooth 5.3 |
| Standardna vtičnica CPU | Vtičnica AM5 |
| Faktor oblike pomnilnika | DIMM 288-pin |
| Največja zmogljivost pomnilnika sistema, ki jo je mogoče namestiti | 256 GB |
| Skupna količina pomnilniške reže | 4 |
| Funkcije pomnilnika | Brez medpomnilnika Dvojni rang Enojna uvrstitev XMP AMD EXPO |
| Podpira protokol podatkovne povezave | 2.5 Gbps |
| Zaslonska vrata | 1 |
| Antene | 2 |
| USB 3.2 2. generacije | 1 (USB 3.2 (tip C)); 2 (USB 3.2 (tip A)) |
| USB 2.0 | 4 (USB 2.0 (tip A)) |
| Faktor oblike | ATX |
| Garancijski rok (mesec) | 36 mesecev |
| Dolžina pakiranja (mm) | 335 mm |
| Širina pakiranja (mm) | 270 mm |
| Višina pakiranja (mm) | 80 mm |
| Teža pakiranja Brutto (kg) | 2.29 kg |
| Teža pakiranja Neto (kg) | 1.9 kg |
| Teža škatle Brutto (kg) | 1.7 kg |
| Maloprodajna embalaža Neto teža kartona | 0.01 kg |
| Maloprodajna embalaža Neto teža plastike | 0.01 kg |
| Paketi v škatli | 1 |
| Vrsta paketa | Maloprodajnih |
