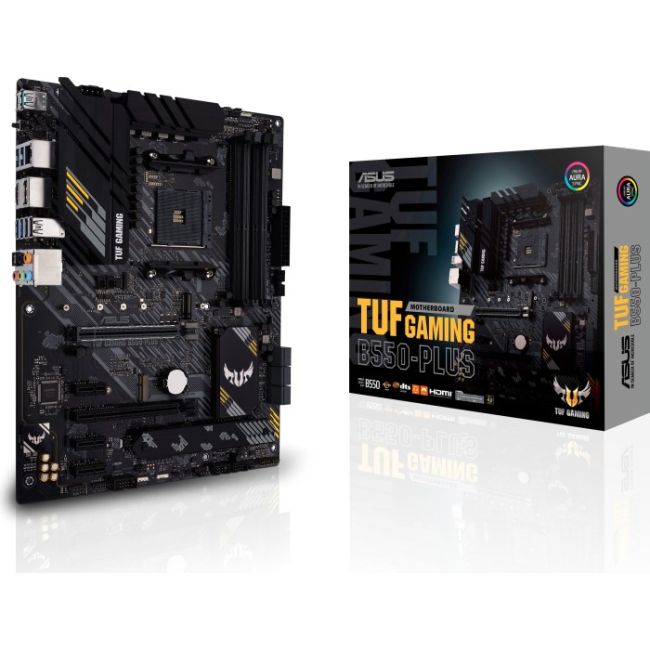

ASUS TUF GAMING B550-PLUS, DDR4, SATA3, USB3.2Gen2, DP, AM4 ATX
Redna cena
140,42 €
Akcijska cena
116,55 €
Razpoložljivost:
Na zalogi
Šifra
E0002210
ali
Hitro in enostavno obročno odplačevanje
Že od
10.95 EUR
Izračun obrokov
PODNOŽJE: AMD AM4
ZA PROCESORJE: AMD RYZEN
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B550
POMNILNIK:
4 x DDR4 DIMM (4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz) do skupno 128GB kapacitete, dual channel podpora
GRAFIKA: DA, preko APU
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16
1 x PCI Express 3.0 x4
3 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek LAN chip (10/100/1000Mbit) z TUF LANGuard
ZVOČNA KARTICA: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
ZUNANJI PRIKLJUČKI:
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
DODATNO:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise Cancelling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
- ASUS DIGI+ VRM (Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
Spletna stran proizvajalca: https://www.asus.com/Motherboards/TUF-GAMING-B550-PLUS/overview/
| Proizvajalec | Asus |
|---|---|
| EAN | 4718017749435 |
| Garancija | 3 leta |
| Vključeni dodatki | I/O ščit Uporabniški priročnik Vijaki DVD disk WiFi antenna |
| Vključeni kabli | 2 x SATA 6 Gb/s kabla |
| Hitrost pomnilnika | 2133 MHz (PC4-17000) 2400 MHz (PC4-19200) 2666 MHz (PC4-21300) 2800 MHz (PC4-22400) 3000 MHz (PC4-24000) 3200 MHz (PC4-25600) |
| Podprti avdio standardi | DTS Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10 SATA III-600 (4) Krmilnik za shranjevanje: PCIe 4.0 x4/SATA (1 x M.2 (ključ M)) Krmilnik za shranjevanje: PCIe 3.0 x4 / SATA (1 x M.2 (ključ M)) Wi-Fi krmilnik: Intel Wi-Fi 6 AX200 PCI-Express () |
| Economic operator in EU / authorized representative | ASUS COMPUTER GmbH |
| Postal address | Harkortstrasse 21-23, 40880 Ratingen, Germany |
| Electronic address | ProductSafety@asus.com |
| Podprti procesorji | AMD Ryzen Series |
| PCI Express 3.0 x16 | 1 |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | UEFI PXE boot 256 Mb Flash ROM |
| Vrsta napajalnih priključkov | 24 + 8 pin |
| Značilnosti matične plošče | AMD 2-Way CrossFire Technology Aura Sync RGB LED |
| PCI Express 3.0 x1 | 1 |
| PS/2 | 1 |
| Avdio podatkovna širina | 24-bit |
| Teža | 0,932 kg |
| Garancija v mesecih | 36 mesecev |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 244 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 1 kg |
| Neto teža plastike maloprodajne embalaže | 1 kg |
| Paketov v škatli | 5 |
| Vrsta pakiranja | Škatla |
| Koda EAN | 4718017749435 |
| Tip | Micro ATX |
| Bruto teža paketa (kg) | 8.2465 kg |
| Dolžina paketa (mm) | 338 mm |
| Širina paketa (mm) | 273 mm |
| Višina paketa (mm) | 68 mm |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Unbuffered |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | ECC |
| USB 3.2 Gen 1 | 4 (USB 3.1 (tip A)) |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 5 (3.5 mm mini vtič) |
| USB2.0 | 2 (4-pin USB (tip A)) |
| Standardi ležišča procesorja | Vtičnica AM4 |
| Nabor čipov | AMD B550 |
| Največja namestljiva zmogljivost pomnilnika | 128 GB |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type C)); 1 (USB 3.2 (type A)) |
| S/PDIF-out optični | 1 |
| Nabor zvočnih čipov | Realtek ALC S1200A |
| Nabor čipov LAN | Realtek RTL8125B |
| LAN | 1 (RJ-45) |
| Wi-Fi | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax Wi-Fi 6 |
| Vrsta pomnilnika | DDR4 SDRAM |
| Bluetooth | Bluetooth 5.1 |
