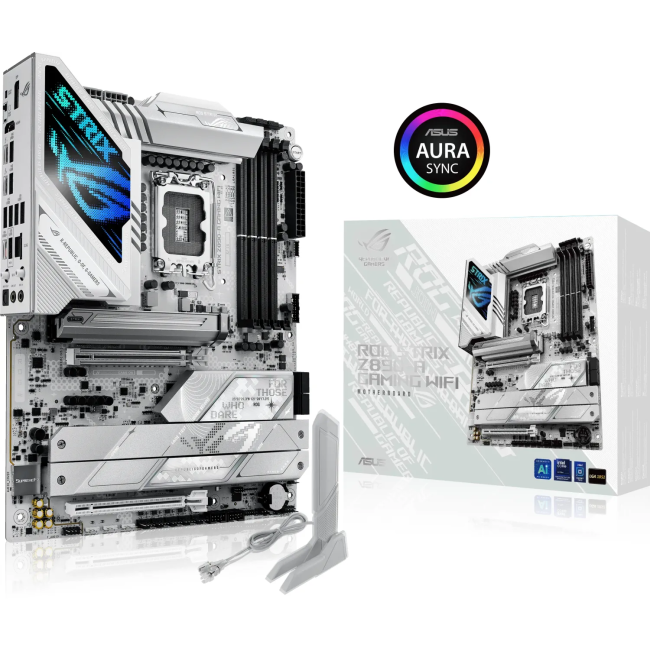

ASUS ROG STRIX Z890-A GAMING WIFI, DDR5, SATA3, USB4, DP, 2.5GbE, WIFI 7, LGA1851 ATX
Redna cena
459,49 €
Akcijska cena
381,37 €
Razpoložljivost:
Na zalogi
Šifra
E0016956
ali
Hitro in enostavno obročno odplačevanje
Že od
10.15 EUR
Izračun obrokov
PODNOŽJE: INTEL LGA1851
ZA PROCESORJE: Intel Core Ultra Processors
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z890 Express
POMNILNIK:
4 x DDR5 (do 9066MHz) do skupno 256GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, Support for non-ECC / ECC Un-buffered DIMM (operate in non-ECC mode), podpora za Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), ASUS Enhanced Memory Profile III(AEMPIII), DIMM Flex, DIMM FIT
GRAFIKA: preko CPU
RAID: DA (0,1,5,10) NVMe SATA
RAZŠIRITVENE REŽE:
Intel® Core™ Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
MREŽNA KARTICA: Intel® 2.5Gb Ethernet z TUF LANGuard + 2x2 Wi-Fi 7 + BLUETOOTH 5.4
ZVOČNA KARTICA: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Rear USB (Total 10 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
ZUNANJI PRIKLJUČKI:
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
DODATNO:
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-SlotASUS
Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Spletna stran proizvajalca: https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/
| Proizvajalec | Asus |
|---|---|
| EAN | 4711387758830 |
| Garancija | 3 leta |
| Vključeni dodatki | Kablske vezi Hiter začetni meni WiFi antenna |
| Vključeni kabli | 2 x SATA 6 Gb/s kabla |
| Hitrost pomnilnika | 9066 MT/s |
| Podprti avdio standardi | Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCI Express 5.0 x4 (1 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCI Express 4.0 x4 (3 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCIe 4.0 x4/SATA (1 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 SATA III-600 (4) |
| Thunderbolt 4 | 2 (USB Type C) |
| Podprti procesorji | Intel Core Ultra Processors |
| Vrsta BIOS-a | UEFI |
| Lastnosti BIOS-a | ASUS EZ Flash ASUS CrashFree BIOS 3 PXE boot 256 Mb Flash ROM |
| Značilnosti matične plošče | RGB LED |
| Podprti operacijski sistem | Microsoft Windows 11 |
| PCI Express 5.0 x16 | 1 |
| Arhitekturne lastnosti | Intel Turbo Boost tehnologija 2.0 Intel Turbo Boost Technology 3.0 |
| PCI Express 4.0 x4 | 1 |
| Teža | 1,98 kg |
| Garancija v mesecih | 36 mesecev |
| Grafika | Preko CPU |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 305 mm |
| Širina (mm) | 244 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 1 kg |
| Neto teža plastike maloprodajne embalaže | 1 kg |
| Paketov v škatli | 4 |
| Vrsta pakiranja | Maloprodajno |
| Koda EAN | 4711387758830 |
| Tip | ATX |
| Bruto teža paketa (kg) | 9.51 kg |
| Dolžina paketa (mm) | 353 mm |
| Širina paketa (mm) | 273 mm |
| Višina paketa (mm) | 68 mm |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered XMP |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | Non-ECC |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 2 (3.5 mm mini vtič) |
| Standardi ležišča procesorja | Socket 1851 |
| Nabor čipov | Intel Z890 |
| Vtična kartica | Wi-Fi krmilnik: 1 x M.2 (Key E) |
| Največja namestljiva zmogljivost pomnilnika | 192 GB |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type C)); 5 (USB 3.2 (type A)) |
| S/PDIF-out optični | 1 (TOSLINK) |
| Nabor zvočnih čipov | Realtek ALC4080 |
| LAN | 1 (RJ-45) |
| Vrsta pomnilnika | DDR5 SDRAM |
| Bluetooth | Bluetooth 5.4 |
| RAID | DA (0,1,5,10) NVMe SATA |
