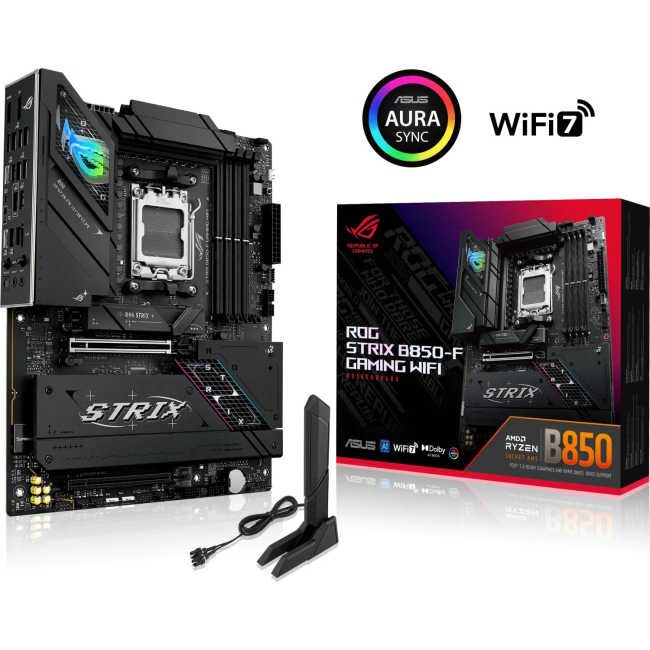

ASUS ROG STRIX B850-F GAMING WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, Wi-Fi 7, AM5 ATX
Redna cena
316,13 €
Akcijska cena
262,39 €
Ni na zalogi
Šifra
E0016915
ali
Hitro in enostavno obročno odplačevanje
Že od
12.81 EUR
Izračun obrokov
PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 9000 & 8000 & 7000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B850
POMNILNIK:
4 x DDR5 DIMM ECC and Non-ECC, Un-buffered Memory 8000+MHz (odvisno od procesorja) do skupno 256GB kapacitete, dual channel in EXtended Profiles for Overclocking, ASUS Enhanced Memory Profile (AEMP)
GRAFIKA: DA - preko APU
RAID: DA
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
RAZŠIRITVENE REŽE:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
MREŽNA KARTICA: Intel 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) LANGuard + 2x2 Wi-Fi 7 (802.11be) + Bluetooth® v5.4
ZVOČNA KARTICA: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
DODATNO:
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Spletna stran proizvajalca: https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-f-gaming-wifi/
| Proizvajalec | Asus |
|---|---|
| EAN | 4711387771013 |
| Garancija | 3 leta |
| Vključeni dodatki | Stickers Kablske vezi Hiter začetni meni WiFi antenna |
| Vključeni kabli | 2 x SATA 6 Gb/s kabla |
| Hitrost pomnilnika | 8000MHz |
| Podprti avdio standardi | Avdio z visoko ločljivostjo SupremeFX Shielding Technology |
| Integrirano | Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCI Express 5.0 x4 (2 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10, Nivo 5 PCI Express 4.0 x4 (2 x M.2 (ključ M)) Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1 SATA III-600 (2) |
| Podprti procesorji | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| PCI Express 4.0 x16 | 1 |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | ASUS EZ Flash ASUS CrashFree BIOS 3 UEFI PXE boot 256 Mb Flash ROM |
| Vrsta napajalnih priključkov | 24 + 8 pin |
| Podprti operacijski sistem | Microsoft Windows 11 |
| Avdio podatkovna širina | 32-bit |
| PCI Express 5.0 x16 | 1 |
| Wi-Fi antena | 1 |
| Teža | 1,63 kg |
| Garancija v mesecih | 36 mesecev |
| Grafika | DA - preko APU |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Nazivna teža | 1.63 kg |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 1 kg |
| Neto teža plastike maloprodajne embalaže | 1 kg |
| Paketov v škatli | 4 |
| Vrsta pakiranja | Maloprodajno |
| Koda EAN | 4711387771013 |
| Tip | ATX |
| Bruto teža paketa (kg) | 8.24 kg |
| Dolžina paketa (mm) | 353 mm |
| Širina paketa (mm) | 273 mm |
| Višina paketa (mm) | 68 mm |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered AMD EXPO |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | ECC/Non-ECC |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 2 (3.5 mm mini vtič) |
| USB2.0 | 4 (USB tip A) |
| Standardi ležišča procesorja | Socket AM5 |
| Nabor čipov | AMD B850 |
| Vtična kartica | Wi-Fi krmilnik: |
| Največja namestljiva zmogljivost pomnilnika | 192 GB |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) |
| S/PDIF-out optični | 1 |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| Nabor zvočnih čipov | Realtek ALC4080 |
| LAN | 1 (RJ-45) |
| Vrsta pomnilnika | DDR5 SDRAM |
| Bluetooth | Bluetooth 5.4 |
| RAID | Da |
