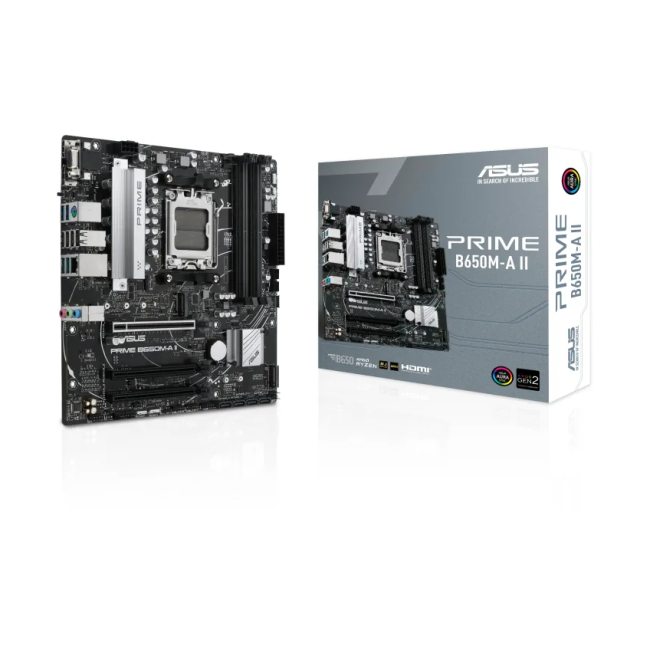

ASUS PRIME B650M-A II-CSM, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, AM5 mATX
Redna cena
162,46 €
Akcijska cena
134,83 €
Razpoložljivost:
Na zalogi
Šifra
231026063611100806
ali
Hitro in enostavno obročno odplačevanje
Že od
12.63 EUR
Izračun obrokov
PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000 Series
FORMAT: ATX format 24.4 cm x 24.4 cm
VEZNI ČIP: AMD B650
POMNILNIK:
4 x DDR5 DIMM ECC and Non-ECC, Un-buffered Memory 7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz (odvisno od procesorja) do skupno 192GB kapacitete, dual channel in EXtended Profiles for Overclocking, OptiMem II podpora
GRAFIKA: DA - preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0/4.0 x8/x4
2 x PCI Express 3.0/4.0 x1
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit)
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
ZUNANJI PRIKLJUČKI:
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
DODATNO:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Spletna stran proizvajalca: https://www.asus.com/motherboards-components/motherboards/csm/prime-b650m-a-ii-csm/
| Proizvajalec | Asus |
|---|---|
| EAN | 4711387025543 |
| Garancija | 3 leta |
| Vključeni dodatki | I/O ščit Uporabniški priročnik Vijaki |
| Vključeni kabli | 2 x SATA 6 Gb/s kabla |
| Hitrost pomnilnika | 5200MHz(PC5-41600) |
| Podprti avdio standardi | Avdio z visoko ločljivostjo |
| Integrirano | Krmilnik za shranjevanje: Supports: Nivo 0, Nivo 1, Nivo 10 SATA III-600 (4) Krmilnik za shranjevanje: PCI Express 5.0 x4 (1 x M.2 (ključ M)) Krmilnik za shranjevanje: PCI Express 4.0 x4 (1 x M.2 (ključ M)) |
| Economic operator in EU / authorized representative | ASUS COMPUTER GmbH |
| Postal address | Harkortstrasse 21-23, 40880 Ratingen, Germany |
| Electronic address | ProductSafety@asus.com |
| Podprti procesorji | AMD Ryzen 7000 Series |
| PCI Express 4.0 x16 | 3 |
| Vrsta BIOS-a | AMI |
| Lastnosti BIOS-a | ASUS CrashFree BIOS 3 ASUS Fan Xpert UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM |
| Vrsta napajalnih priključkov | 24 + 8 pin |
| Podprti operacijski sistem | Microsoft Windows 11 Microsoft Windows 10 64-bit |
| PS/2 | 1 |
| Avdio podatkovna širina | 24-bit |
| Podprti protokoli podatkovnega povezovanja | 2.5 Gbps |
| Lokacija naprave | Integrirano |
| Višina (mm) | 244 mm |
| Širina (mm) | 244 mm |
| Garancija v Sloveniji | Da |
| Število kosov v paketu | 1 |
| Neto teža kartona maloprodajne embalaže | 0.1 kg |
| Neto teža plastike maloprodajne embalaže | 0.1 kg |
| Paketov v škatli | 1 |
| Vrsta pakiranja | Škatla |
| Koda EAN | 4711387025543 |
| Tip | Micro ATX |
| Bruto teža paketa (kg) | 1.58 kg |
| Dolžina škatle (mm) | 275 mm |
| Širina škatle (mm) | 275 mm |
| Višina škatle (mm) | 68 mm |
| Tip pomnilnika | DIMM 288-pin |
| Značilnosti pomnilnika | Dva DDR kanala Unbuffered OptiMem II AMD EXPO |
| Število pomnilniških rež | 4 |
| Zagotavlja metodo preverjanja napak | ECC/Non-ECC |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| HDMI | 1 (HDMI (Tip A)) |
| Vrsta avdio izhoda | 7.1 kanalni prostorski zvok |
| Avdio vmesnik | 3 (3.5 mm mini vtič) |
| USB2.0 | 4 (USB tip A) |
| Standardi ležišča procesorja | Socket AM5 |
| Nabor čipov | AMD B650 |
| Največja namestljiva zmogljivost pomnilnika | 192 GB |
| DisplayPort | 1 |
| VGA | 1 (15-pin DB) |
| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)) |
| LAN | 1 (RJ-45) |
| Vrsta pomnilnika | DDR5 SDRAM |
| Garancija v mesecih | 36 mesecev |
| Teža | 0,73 kg |
